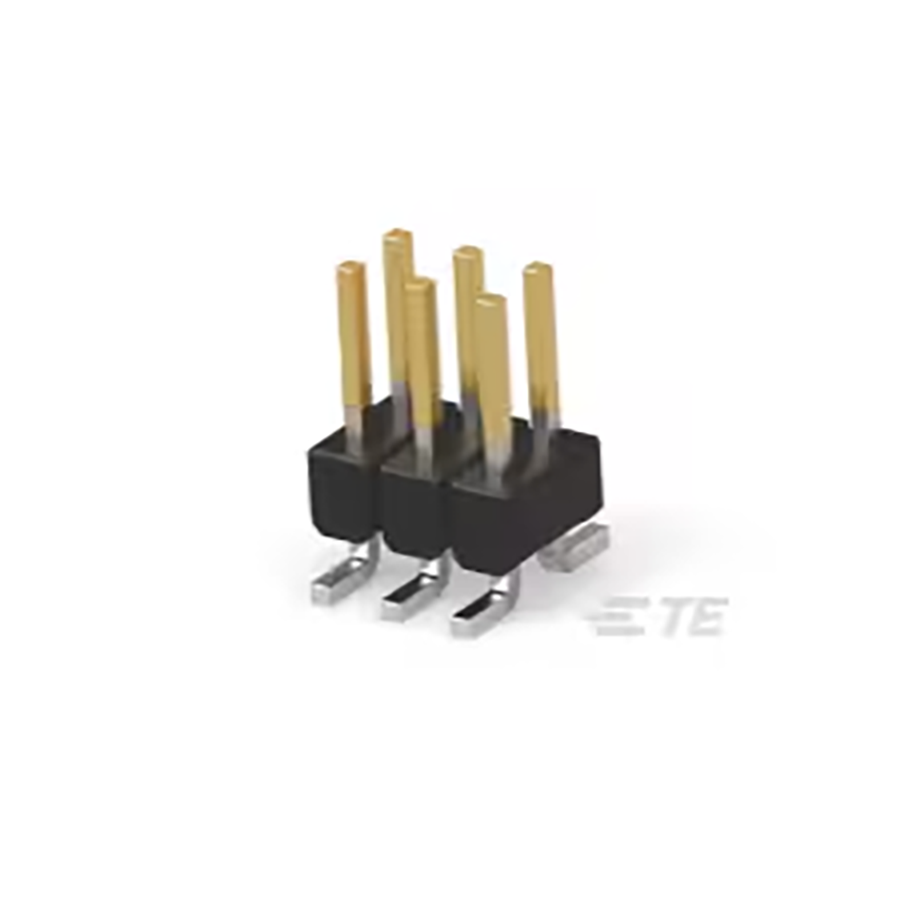

1241050-3
Manufacturer:
TE Connectivity
Mfr.Part #:
1241050-3
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header, Pin, Plug Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Voltage Rating (AC) | 250 V |
| Height | 11.015 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | CuZn |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Working Voltage | 250 V |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 6 |
| ELV | Compliant |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polycyclohexylenedimethylene |
| Contact Style | Pin |
| Housing Color | Black |
| Contact Mating Length | 5.7912 mm |
| Keyed | No |
| PCB Mounting Orientation | Vertical |
| Plating Thickness | 800 nm |
| Contact Gender | Male |
| High Temperature Housing | No |
| Mating Post Length | 5.8 mm |
| Contact Shape | Square |
| High Speed Serial Data Connector | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
Stock: 13
Distributors
pcbx
pcbxUnit Price$3.28253
Ext.Price$3.28253
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.28253 | $3.28253 |
| 10 | $3.20141 | $32.01410 |
| 25 | $3.17603 | $79.40075 |
| 50 | $3.15085 | $157.54250 |
| 100 | $3.12592 | $312.59200 |
